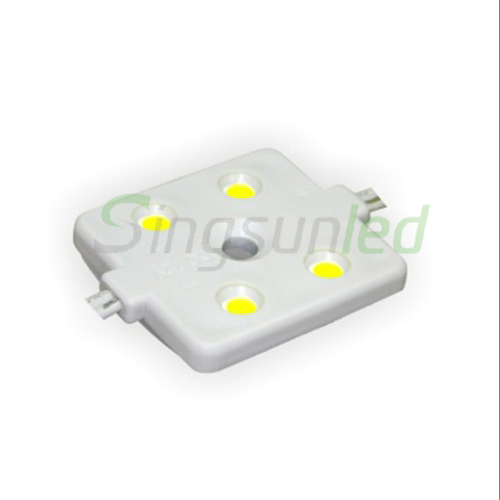

Specification:
Dimension | 35*35*4 mm | |||||||
LED No | 4 pcs 5050 SMD LED | |||||||
Voltage | Input 12VDC | |||||||
View angle | 120 degree | |||||||
Current | 80mA | 80mA | 80mA | 80mA | 80mA | |||
Watts | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | |||
Lumen | 80 | 12.6 | 43.2 | 11.7 | 25.6 | |||
Cover | Milk ABS | |||||||
Life | 50,000 hrs. Lumen Maintenance:>97%@5,000hrs | |||||||
Color | White | Blue | Green | Yellow | Red | |||
Certificate | CE:BTRE0708181359 / RoHS: BTRS0708310889 | |||||||
Warranty | 36 months | |||||||
Weight | 11g/pc.660g/60pcs/bag | |||||||
IP | IP65 The PCB be covered by resin. | |||||||
Part No | STF-334W-50B | STF-334B-50B | STF-334G-50B | STF-334Y-50B | STF-334R-50B |
Feature:
1. Super brightness: 4 pcs 5050 SMD LED mouted, 80 lumen permodule(Epistar chip)
2. Wider viewing Angle: 120 degree.
3. Lowconsunmtion: most of the 4-led 5050 SMD LED module in the market is 1.2 Watt,but our new designed 4-led module is just 0.96 Watt, very good heat disspation.
4. Easy Installation: LED Modules can be easily installed with 3Mdouble-sided sticking tape and connectors.
5. 3Yea
