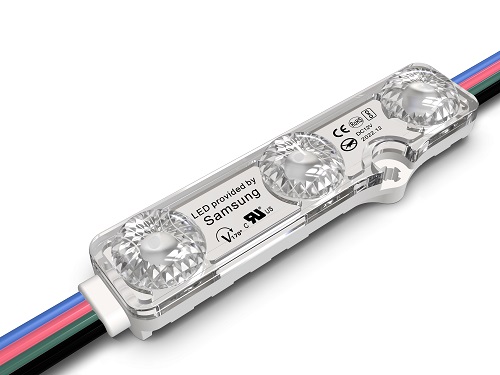

Color Changing RGB LED Module
Dimension | 78*15*8mm |
LED No | 3pcs 5050 SMD LED Beam angle: 150 Degree |
Voltage | Input 12VDC |
Current | 60mA |
Watts | 0.72W |
Lumen | 36LM |
Cover | Milk ABS |
Life | 50,000hrs |
Cable | Yellow +Green +Blue +Red |
Color | RGB |
Certificate | CE:BTRE0708181359 / RoHS: BTRS0708310889 SGS: MIC-QIP-AS072113 |
IP | IP65 The PCB be covered by resin. |
Part No | STF-75123RGB-50 |
Features:
1. RGB module with 160,000 full-colors expression
2. 3chip-in-1 SMD LED mounted (Made in Taiwan)
3. Mixture of natural color is available
4. Separate provision with SK12-200/400Q controller which has various drivingeffect modes
5. Long life LEDs last for years (50,000 hours)
6. Efficient Heat release with double-sided PCB design
7. Durable epoxy resin fill for waterproof (IP65) rating
8. 120° viewing angle creates more uniform backlightingeffects and better silhouettes
9. Green products free from any hazardous substances
