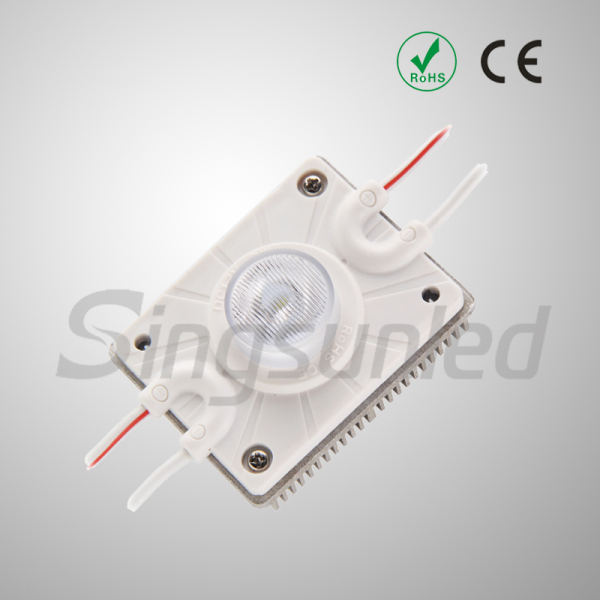

double side lighting box high power led module

    Model:X1-3W



Specification:

LED Type

3535  LED

LED BRAND

GENESIS

Viewing Angle

15*45��

Luminous Flux(lm)

210 LM

LED Qty

1 pcs

 Life Span

80,000 H

Working Voltage

DC12V

Consumption

3 W

Driving Method

constant voltage

Stand Length In Serial Connection

15pcs

Maximum Length In Serial Connection

��15pcs

Shell

Milk white ABS

Dimension

45*35 mm

Available Color

White

Certification

CE&ROHS

Working Temperature

 -20�� ���� +60��

Store Temperature

 -50�� ���� +60��

IP Degree

IP65


Application:

1. Side lighting of double side lighting box.


Features:

1. With series-parallel connection circuit forled pcb, each string has 15pcs and each module can be cut individually.

2. Take 3535LED as light source, no lightspot, low decay and good consistency.

3. The LED passed America LM80 standard, 5 years quality warranty.

4. ABS Injection outer cover, beautiful andunique appearance, good heat dissipation.

5. Low consumption, high brightness, freemaintenance, long life span.

6. Input voltage: DC12V, reliable and safe.

7. Protect level: IP65, waterproof.


Package:

Every 15 pcs per a string, every 2 string inan anti-static bag, 600 pcs per a carton box. Carton size: 50*35*31.5 cm.

Net Weight: 35 g/pc;  525 g/string;  22kg/carton.



Dimension Diagram(mm):



Connection Diagram:
