Welcome to use Touch Screen RGBW LED Control System,please read the instruction
carefully before using.
I .Product Description
This system is a high-performance RGBW LED touch remote controller, adopting the most
advanced PWM control technology, controlling all RGBW LED products with Five lines and four
circuits( common anode),owning 640 thousand colors and 20 automatical changing modes to
choose.
Also, It has the memory function(that is to say, the previous settings will be resumed when power
on again). It is widely used in LED RGBW LED strip light, LED module and so on.
With the technology of the 2.4G high frequency wireless remote control, it has the the
characteristics of low power consumption, long distance transmission, and strong anti-interference
ability ,high speed telecommunications, etc.
The remote looks fashionable and elegant , with simple and practical functions of color changing
and brightness dimming, the capacitive touch screen design makes the remote easy to use .
The modular design and easy screwed terminals enable the controller easy to match with all kinds
of LED light products.
II. Technical Data
Remote | Size | 110×52×20mm |
Power | AAA×2 | |
Radio Frequency | 2400-2483.5 MHZ | |
Fabrication processing | Multicolor printing & UV varnish | |
Controller | Size | 85×45×23mm |
Working voltage | 12V～24V | |
Control way | R G B W four channels | |
Max load per channel | 6A | |
Output Connection | Common anode | |
Telecontrol distance | 20--30 meters | |
Programs | 20 kinds |

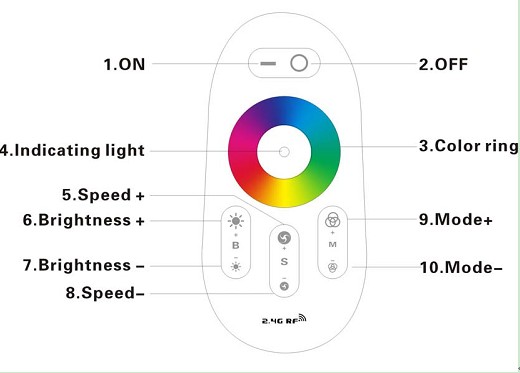

III. Function of keys
IV. Program List
Number | Mode | Brightness State | Speed State | Remark |
1 | Static white color | Adjustable | Unadjustable | White only |
2 | Color /white static coexist | Adjustable | Unadjustable | Color ring free to choose, Brightness adjusts color light only |
3 | All colors gradual change |
