E4

Name: E4
Brand: SINGSUNLED

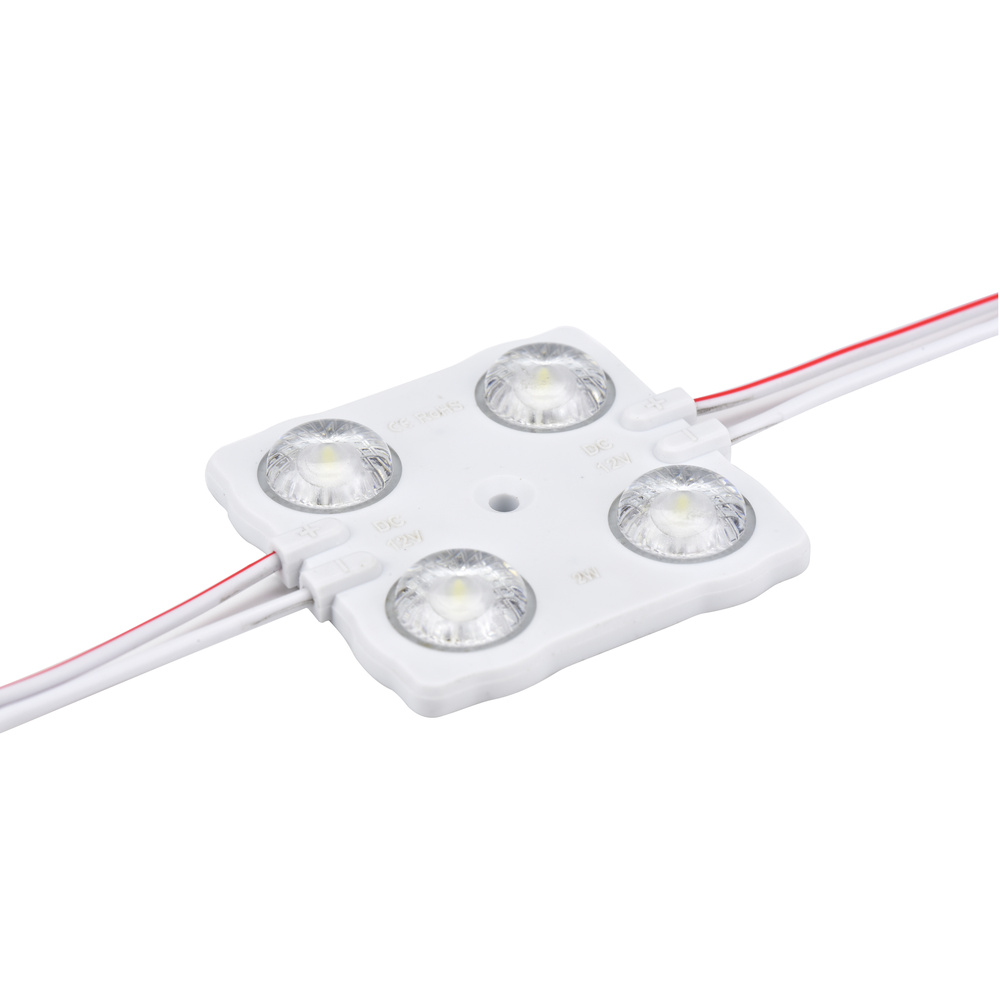

E4 is a 2 W square four-LED signage module with a 170° lens, IP67 protection and 12 V DC / 24 V DC options for channel letters and light boxes.

ENQUIRE

Key benefits

4 Epistar 2835 SMD LEDs per module with 2 W rated power.
170° wide-beam lens for smooth, uniform illumination.
IP67-rated injection-molded PVC housing with a PC lens.
2700–10000 K colour temperature options and higher CRI available on request.
Recommended for 40–100 mm deep channel letters and light boxes.
50,000-hour rated lifespan. Five-year warranty subject to the storage, installation and maintenance conditions in the datasheet.

Technical specifications

Optical

LED Type: 2835 SMD LED
LED Brand: Epistar
Viewing Angle: 170 °
Luminous Efficacy: 160 lm/W
LED Quantity: 4 pcs
Rated Lifespan: 50000 h
Binning: 5 SDCM
CRI: >75; higher CRI available on request
Available Colours: 2700–10000 K

Electrical

Supply Voltage: 12 V DC / 24 V DC
Power Consumption: 2.00 W
Driving Method: CV (Constant Voltage)
Maximum Serial Connection: 20 pcs/string

Mechanical

Shell Material: PVC
Lens Material: PC
Cable Specification: 18 AWG
Length: 45.00 mm
Width: 43.00 mm
Height: 7.00 mm
Centre-to-Centre Distance: 200.00 mm

Dimensions

Product Dimensions: 45 × 43 × 7 mm

Environment

Operating Temperature: -20°C to +60°C
Storage Temperature: -50°C to +60°C
IP Rating: IP67
Warranty: 5 years

Installation

Recommended Mounting Depth: 40.00 mm to 100.00 mm
Recommended Application: Front-lit channel letters; advertising light boxes; commercial signage; indoor brand displays

Packaging

Minimum Order Quantity: 1000 pcs
Pieces per Chain: 20 pcs
Pieces per Bag: 100 pcs
Pieces per Carton: 1000 pcs
Carton Size: 35 × 34 × 30 cm
Carton Net Weight: 16.50 kg
Carton Gross Weight: 17.00 kg

Product resources

Downloads are available through our enquiry-assisted resource service.

Data sheet
E Series Datasheet — E1, E2, E3, E4 and E4L
File name
SINGSUNLED-E-Series-E1-E2-E3-E4-E4L.pdf
File type
application/pdf
File size
38.9 MB
